PureTools PT-CON-WP8B, Sort, Metall, DC, 12 V, 2 A, 70 mm

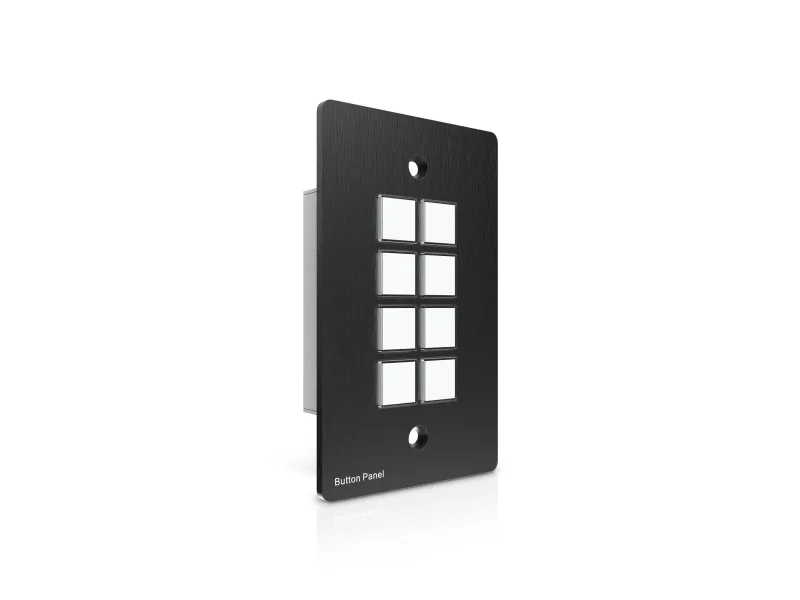

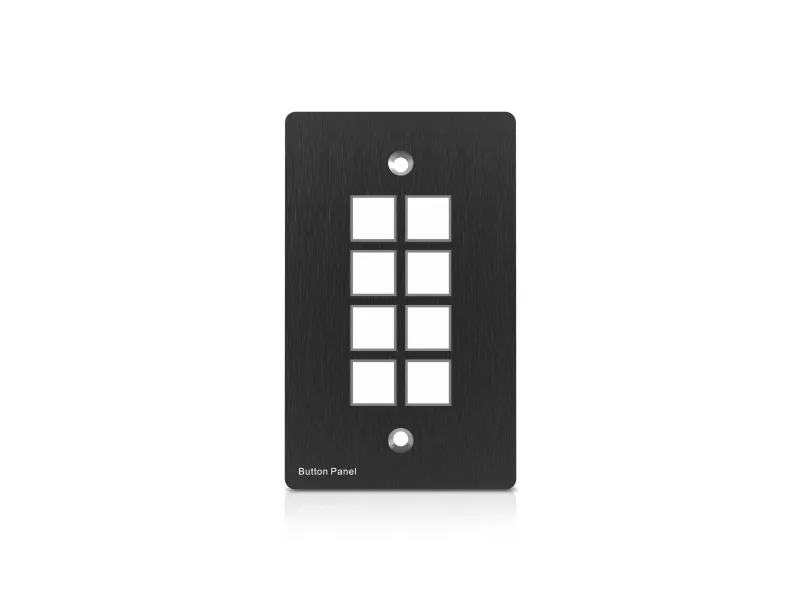

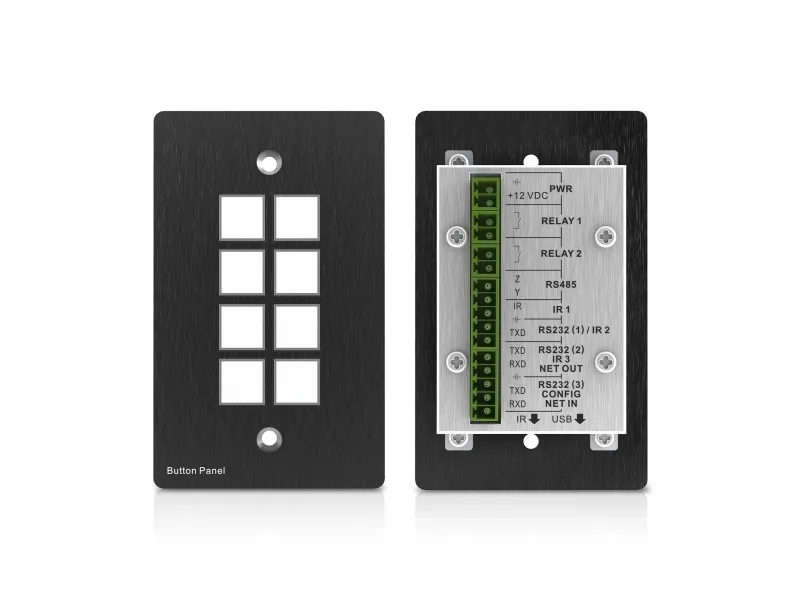

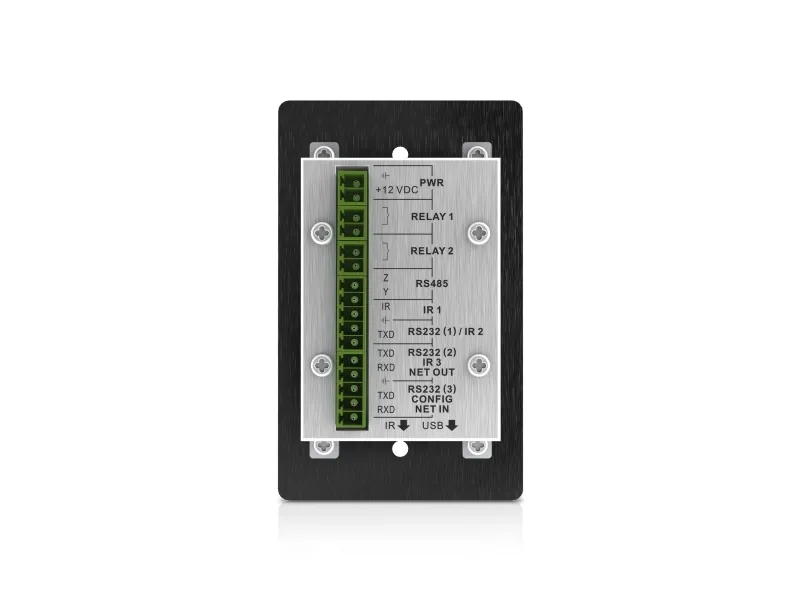

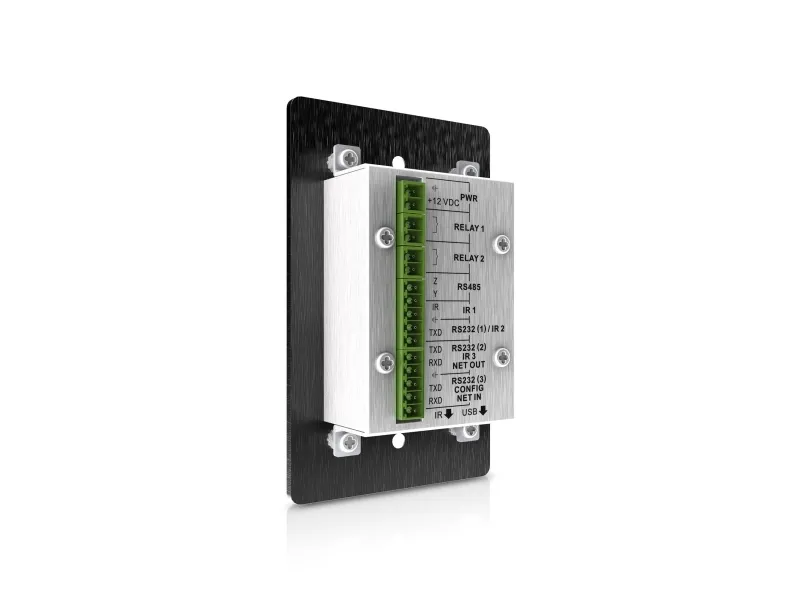

Programmable 8-Button Control Panel as Wall-Plate, Black\n\nThis is a programmable 8-button control panel as wall-plate. Every button is programmable and works either individually or together with another one. The panel features 3x RS232, 1x RS485, 3x IR, 2x relay and 1x miniUSB ports. It is able to control any device via one of the protocols, such as projectors, screens, TVs / monitors, AV extenders / splitters, etc. It is an easy-to-use control device for presentations in show rooms, classrooms and boardrooms as well as for complicated AV installations, as in broadcasting or media production environments. Please note: The first RS232 port and the second infrared port share the same connection and can thus not be used at the same time. The same issue applies for the second RS232 and the third infrared port, which are also "linked".\n\nThe PureTools Series - High Quality AV Products for Commercial Applications\n\nThe PT-WP8 module is a individually programmable 8-button control panel in 1-gang size (2,75" x 4,5") for any AV application with each button supporting page and toggle settings. It is ideally suited for integration into office furniture. Each key is freely programmable It features RS232, RS485, IR & relay control ports to control any device of choice. Crystal and luminescent, programmable buttons Every button can be programmed from a PC via USB or RS232, using the software - Find all the details and features of this great and easy to use software in the user maual. The backlight intensity of the transluscent buttons can be adjusted as well Customizable and changeable labels for any button - Every label inside the respective button can be changed at will.\n\n- Programmable, 8-button control panel as wall-plate with 3x RS232, 1x RS485, 3x IR, 2x relay and 1x miniUSB ports - Crystal and backlit (brightness is controllable) buttons with easyly, user-friendly customizable labels\n- Every button can be programmed to transmit bi-directional RS232 and RS485 commands simultaneously. They can also be programmed to send the infrared code and control the relay, to let them work simultaneously for controlling any device\n- Every button features a built-in infrared and RS232 code learning function as well as baud-rate configuration option - Intuitive programming suite for simple command uploading and configuration\n- Includes a comprehensive "ID looping function" - Up to 99 (ninety-nine) programmable control panels can be looped in a system and be controlled together\n- Programming via USB or RS232 - Working with the user-friendly PC software
