IO Sunix PCI 4x seriell FPro&LPro (SER5056A-B)

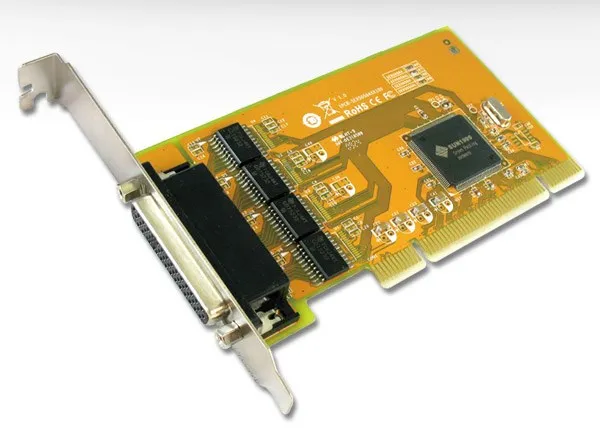

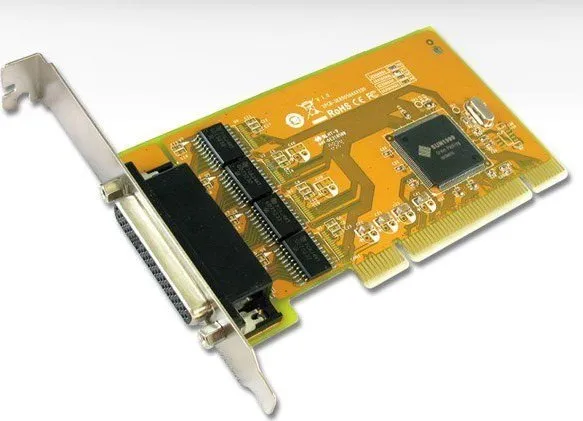

SUNIX SER5056A, Universal PCI serial communication board, allows users to add or expand four RS-232 ports on PC-based system. The card is compatible with both 64 / 32-bit PCI architecture supporting 3.3 and 5V Bus, allowing it to be installed in virtually any PC-based systems. SUNIX SER5056A card has 128-bytes onboard FIFO buffer and compatible with 16C950 UART specification. It is designed with SUNIX UART controller, SUN1999 and as well built with many of SUNIX advanced features and technologies, making it the best solution for commercial and industrial automation applications.Features:- Expands 4 independent RS-232 serial port with communication speeds up to 115.2Kbps;- High reliability SUN1999 16C950 compatible UART controller on-board;- Compliance with PCI 33MHz Ver. 3.0/2.3/2.2./2.1 specification;- Supports both 64-bit & 32-bit PCI bus slot and 3.3V & 5V power;- On-chip hardware auto flow control to guarantee no data loss;- Built-in ± 2KV ESD protection for all serial signals;- Plug-n-Play, I/O address and IRQ assigned by BIOS;- Certified by CE, FCC, RoHS, and Microsoft WHQL approval;- Support Microsoft Windows, Linux, and DOS.
SUNIX Group SER5056A. Host interface: PCI, Output interface: Serial, Serial interface type: RS-232. Purpose: PC, Certification: FCC, CE. FIFO (First In, First Out): 128 B. Windows operating systems supported: Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional..., Server operating systems supported: Windows 2000 Advanced Server, Windows 2000 Server, Windows Server 2003, Windows Server 2003 x64,.... Transfer rate: 0.014 MB/s, Connectivity technology: Wired, Compatible operating systems: Linux 2.4.x / 2.6.x
