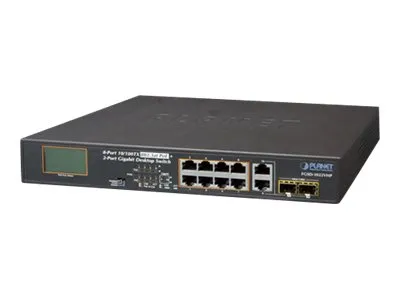

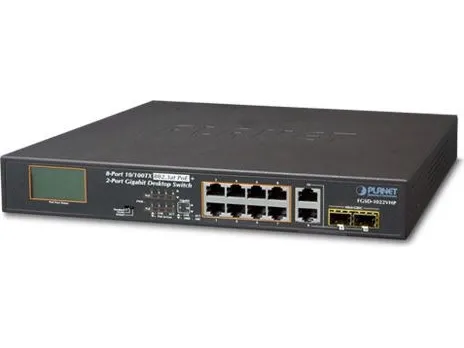

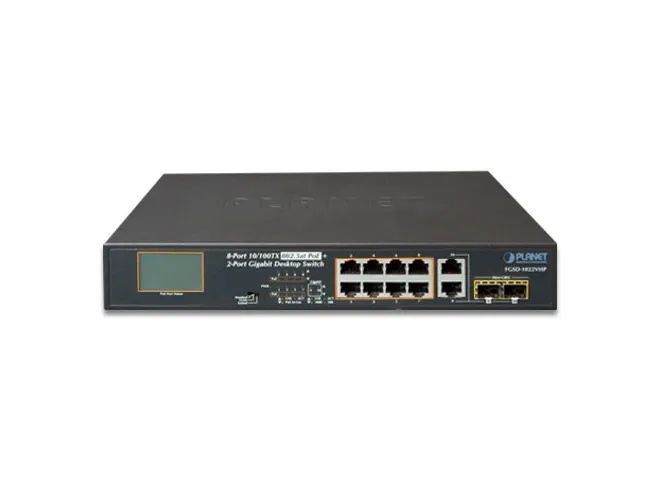

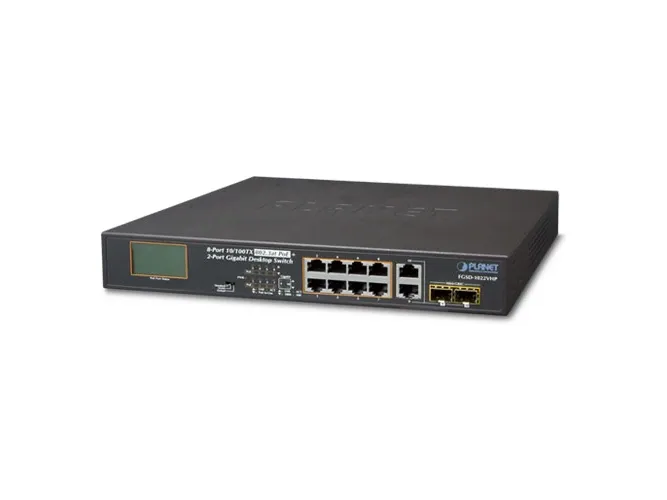

PLANET FGSD-1022VHP - Switch - ikke-styrt - 8 x 10/100 (PoE+) + 2 x kombo-Gigabit SFP - stasjonær - PoE+ (120 W)

Just “Plug and Watch” for a Quick Solution

PLANET FGSD-1022VHP is an ideal Plug and Watch Power over Ethernet solution which provides quick installation, real-time PoE work status monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality without any PC or software required.

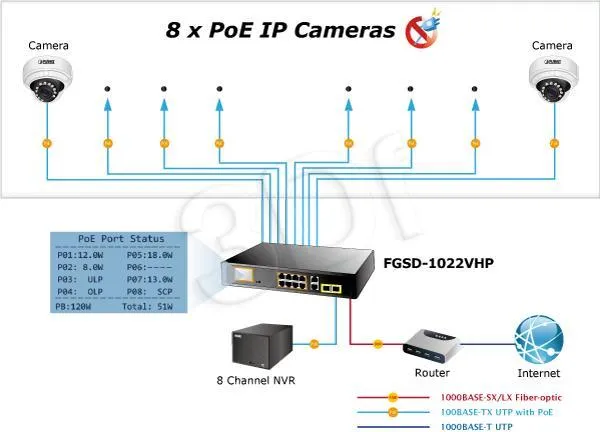

PLANET FGSD-1022VHP is equipped with 8 10/100/1000BASE-T ports with each port taking up 30 watts of PoE+ power, and 2 Gigabit TP/SFP combo interfaces with inner power system. With a total PoE+ power budget of 120 watts and non-blocking data switching performance, the FGSD-1022VHP can fulfill the demand of sufficient PoE power for HD IP surveillance. It offers a desktop-sized, reliable and visible power solution for small businesses and system integrators deploying Power over Ethernet networks.

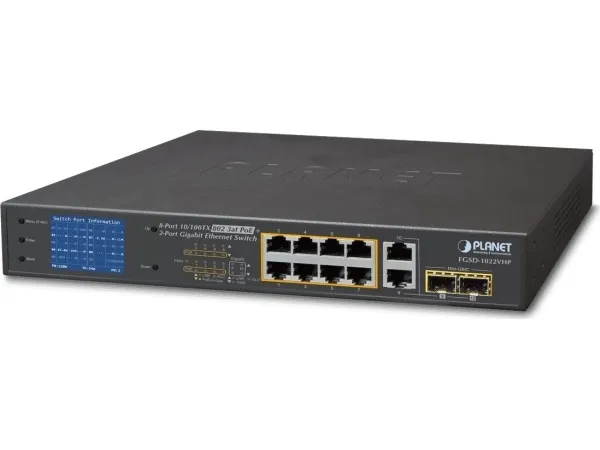

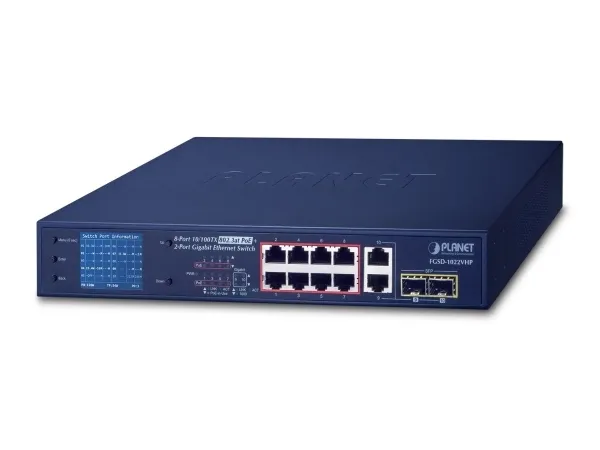

Smart and Intuitive LCD Control

PLANET FGSD-1022VHP provides an intuitive color panel on its front panel that facilitates the Ethernet management and PoE PD management. They greatly promote management efficiency in large-scale networks for enterprises, hotels, shopping malls, government buildings and other public areas, and feature the following special management and status functions:

PoE management and status
Port management and status
Switch mode: Standard, VLAN, Extend
Budget and bandwidth control
PD alive check
Maintenance: Screen saver, fan control, factory default and save configuration


Standard, VLAN and Extend Operation Modes Offered

PLANET FGSD-1022VHP provides Standard, VLAN and Extend operation modes. The FGSD-1022VHP operates as a normal IEEE 802.3af/at PoE Switch in the Standard operation mode. The VLAN operation mode features the port-based VLAN function that can help to prevent the IP camera’s multicast or broadcast storm from influencing each other.

In the Extend operation mode, the FGSD-1022VHP operates on a per-port basis at 10Mbps duplex operation but can support 30-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the FGSD-1022VHP provides an additional solution for 802.3at/af PoE distance extension, thus saving the cost of Ethernet cable installation. Its VLAN isolation function isolates ports so as to prevent broadcast storm and defend DHCP spoofing in the Extend operation mode.


Flexible Extension Solution

PLANET FGSD-1022VHP provides 2 extra Gigabit TP/SFP combo interfaces supporting 10/100/1000BASE-T RJ45 copper for surveillance network devices such as NVR, video streaming server or NAS to facilitate surveillance management. Or through these Gigabit speed fiber SFP slots, the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver is inserted to be uplinked to a backbone switch and monitoring center over a long distance. The distance can be extended from 550m to 2km (multi-mode fiber), even going up to 10/20/30/40/50/60/70/120km (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.


Robust Protection

PLANET FGSD-1022VHP provides contact discharge of ±4KV DC and air discharge of ±6KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.


Easy Installation and Cable Connection

As data and power are transmitted over one cable, the FGSD-1022VHP does not need a second cable and electrical outlets on the wall, ceiling or any unreachable place. Thus, it helps to lower the installation costs and simplify the installation effort. All the RJ45 copper interfaces of the FGSD-1022VHP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cable. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.
