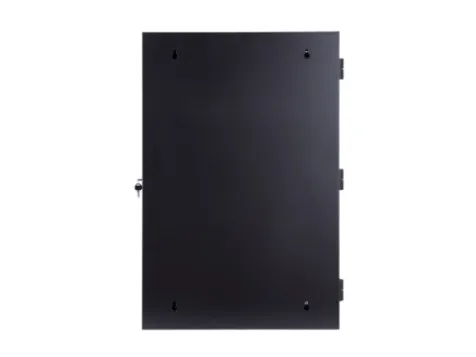

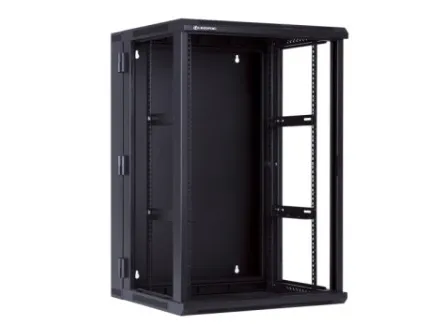

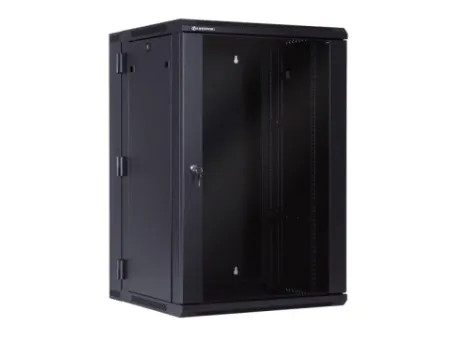

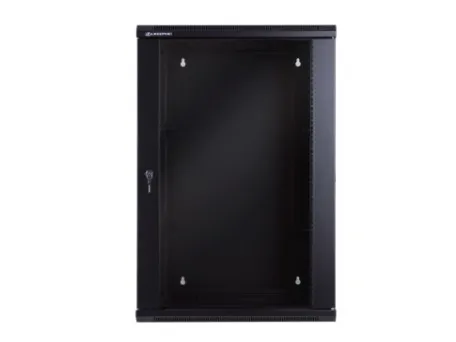

Linkbasic WCC18-655-BAA-C, 18U, 60 kg, sortering

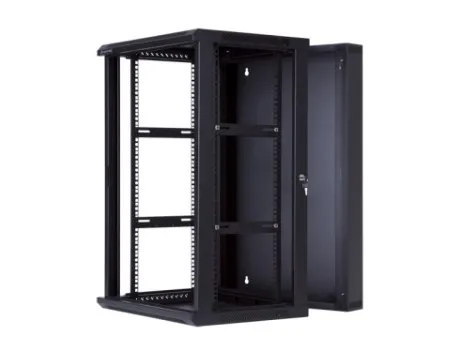

WCB-series two-section hanging cabinets are most often used in close circuit television, security alarm, and access control system installations, where quick and easy access to the back section of the cabinet is an important factor. Thanks to this, access to the back side of the mounted devices does not pose any difficulties. The colour of the cabinet is black RAL9004.\n\nApart from the possibility to mount devices in 19-inch standard, other devices that are not compatible with the rack system (such as switches or recorders) may be placed in the cabinets with the use of shelves. A wide range of optional accessories allows to adjust the cabinet to your own needs.\n\n- A two-section construction - fast and easy access to the back section of the cabinet.\n- Standard equipment: mounting rail set.\n- Side doors mounted on latches with a lock assembly option.\n- A rack rail indicating the amount of units (U).\n- Two cable ducts - ceiling and floor.\n- A frame with a load capacity of 60kg.\n- Cold-rolled steel.\n- Frame thickness: 1.2 mm.\n- Mounting rail thickness: 1.5 mm.\n- Side panel thickness: 1.2 mm.\n- Protection class IP20.\n- Surface finish: degreasing, etching, phosphating, powder coating.\n- Protection against rust, oxidation, scratches, corrosion.\n- Front door - glass or perforated steel.\n- Available in black RAL9004 and grey RAL7044.\n- Compliant with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, and GB/T3047.2-92 standards.\n- Compatible with metric ETSI and 19-inch international standards.
