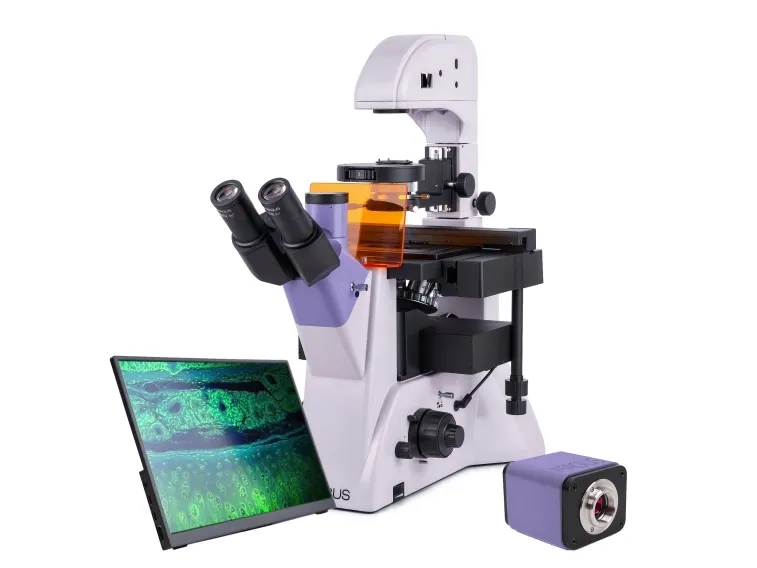

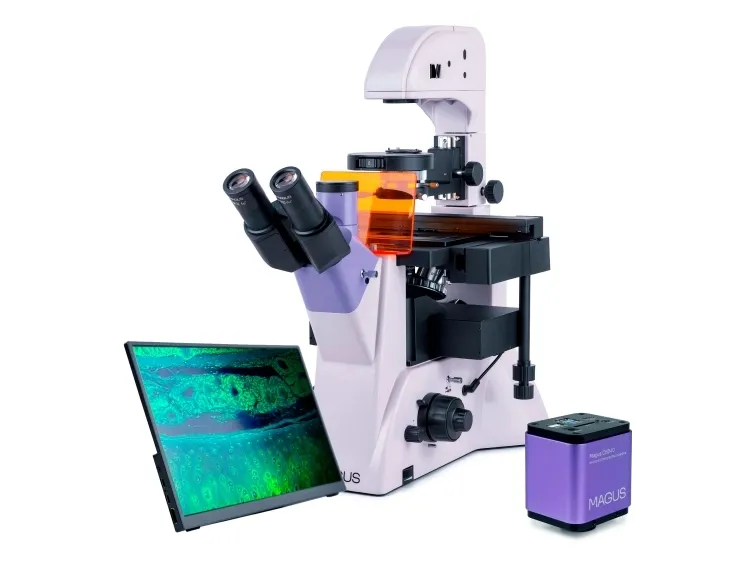

MAGUS Lum VD500L LCD Fluorescence Inverted Digital Microscope

The MAGUS Lum V500L is an inverted microscope for fluorescence microscopy in the reflected light and brightfield and phase contrast microscopy in the transmitted light. DAPI, FITC, and TRITC fluorochrome filters are used for fluorescence microscopy. The inverted design allows you to study samples in laboratory ware such as petri dishes, flasks, etc. The height of the lab ware can be 55mm or 165mm when the stand is tilted. The optics are designed for lab ware with a bottom thickness of 1.2mm. The microscope is ideal for research and routine laboratory work and it can be used for educational purposes.

Digital camera

MAGUS CHD40 is a digital HDMI camera with three video interfaces and automatic switching between 4K and Full HD depending on the monitor resolution.
The camera is equipped with an 8MP sensor and produces realistic images in 4K resolution (3840x2160px) when connected via HDMI or USB3.0. When connected via Wi-Fi, the image quality is Full HD (1920x1080px).
The camera uses an HDMI interface to connect to a TV, monitor, or projector directly. In this mode, the camera operates autonomously without a connection to a PC. The HDMI interface provides a high and stable transfer rate from the camera to the external screen. You can connect the camera to a PC via Wi-Fi or USB3.0. Video is recorded at 30fps.
The camera combines high FPS and high bandwidth HDMI. Therefore, videos are vivid, with no freezes or gaps between frames. At maximum resolution, the image is well-detailed, moving objects are visible without bugs, and object movement is displayed without delays.

Monitor

The MAGUS MCD40 Monitor is designed to use a visualization system of the MAGUS microscope.
It is connected to a camera mounted on the microscope to display real-time images. It supports MAGUS 4K HDMI cameras.
The screen diagonal is 13.3 inches. The IPS matrix provides bright images with large viewing angles. If you look at the display at an angle, the color reproduction is not distorted.
The display can be placed on a folding stand on a table or shelf or mounted directly to the camera or microscope stand.

Optics

Two options for mounting a digital camera and monitor: The trinocular tube is for mounting a monitor, and the side port on the body is for mounting a digital camera. There is beam splitting: 100/0 or 0/100 (on the body) and 100/0 or 50/50 (trinocular head). The 45° eyepiece tube inclination angle allows for observation with maximum comfort. When assembling the microscope, the user can rotate the eyepiece tubes 180°.

The set includes six plan achromatic objectives: three of them for brightfield and fluorescence microscopy, and another three for phase-contrast microscopy. They are infinity-corrected and have a long working distance. The revolving nosepiece has six slots for mounting objectives. The revolving nosepiece is located under the stage on a stand.

Illumination

The fluorescence excitation source is a 5W LED with 50,000 hours of lifetime without replacement. There are three excitation filters: DAPI, FITC, and TRITC fluorochrome filters. LED illumination is more energy efficient and easier to maintain than mercury illumination, which is why it is recommended for use in universities. LED illumination provides color consistency. The LEDs turn on and off quickly and do not overheat during long hours of operation.

The source of the transmitted light is also a 5W LED. It is bright enough for brightfield and phase contrast microscopy techniques with each objective.

Both reflected and transmitted illumination can be adjusted according to the Köhler method. It allows you to reach the maximum resolution limit for each objective lens and get a clear, sharp image without artifacts or darkening at the edges.

The microscope is equipped with a phase-contrast condenser: Three slots are used for phase objectives with magnifications of 10x, 20x, and 40x, and the fourth slot is for brightfield microscopy. Phase rings can be centered. You can switch between the microscopy techniques by rotating a dial.

Stage and focusing mechanism

The fixed stage is equipped with a mechanical attachment for moving laboratory ware and three cup holders of different sizes. The lab ware can be moved in two mutually perpendicular directions in the horizontal plane. The microscope has a coarse and fine focusing mechanism. The coarse focusing mechanism has a lock knob and tension adjustment. The knobs are ergonomically designed to allow the user to maintain a relaxed posture while working.

Accessories

The microscope can be equipped with additional eyepieces, calibration slides, or a digital camera from the MAGUS line of accessories.

Key features of the microscope:

• Inverted design for observing samples in lab ware with a bottom thickness of 1.2mm and samples of up to 55mm height in as well as up to 165mm height if the stand is tilted up


• Microscopy techniques: fluorescence (reflected light), brightfield and phase-contrast (transmitted light)


• Köhler illumination setup for transmitted and reflected light; long-lasting 5W LEDs without replacement as light sources


• There are three excitation filters: DAPI, FITC, and TRITC fluorochrome filters


• Phase-contrast condenser for quick and convenient switching between the microscopy techniques


• Trinocular head; two options to mount a camera or monitor: the 100/0 or 0/100 beam splitting (on the body), 100/0 or 50/50 beam splitting (on the head)

Key features of the camera:

• The camera operates autonomously without a connection to a PC and via HDMI interface. Can be connected to a PC via Wi-Fi and a USB3.0 interface


• Auto switching between 4K and Full HD depending on monitor resolution


• 30fps for observing moving objects, recording video, and moving the sample without jerkiness or delays


• SONY Exmor/Starvis color CMOS backlit sensor provides low noise level and high light sensitivity even in low-light conditions. You will get clearer, brighter, and more color-saturated images


• Software with photo, video recording, editing, external display functions, linear and angular measurements

The kit includes:

• MAGUS CHD40 Digital Camera (digital camera, HDMI cable (1.5m), USB3.0 cable (1.5m), USB mouse, 32GB SD memory card, USB Wi-Fi adapter (2pcs.), AC power adapter 12V/1A (Euro), installation CD with drivers and software, user manual and warranty card)


• MAGUS MCD40 LCD Monitor


• Base with a built-in power input, reflected light illuminator, transmitted light source, condenser, focusing mechanism, stage, and revolving nosepiece


• Trinocular head


• Infinity plan achromatic objective: PLL 10x/0.25 phase WD 4.3 mm


• Infinity plan achromatic objective: PLL 20х/0.40 WD 8.0mm


• Infinity plan achromatic objective: PLL 40х/0.60 WD: 3.5mm


• Infinity plan achromatic objective: PLL 10x/0.25 PHP2 WD 4.3mm


• Infinity plan achromatic objective: PLL 20x/0.40 PHP2 WD 8.0mm


• Infinity plan achromatic objective: PLL 40x/0,60 PHP2 WD 3.5mm


• Eyepiece 10x/22mm with long eye relief (2 pcs.)


• UV shield


• C-mount adapter 1x


• Hex key wrench


• Power cord


• Dust cover


• User manual and warranty card

Available on request:

• 10x/22mm eyepiece with a scale


• 12.5x/14mm eyepiece (2 pcs.)


• 15x/15mm eyepiece (2 pcs.)


• 20x/12mm eyepiece (2 pcs.)


• 25x/9mm eyepiece (2 pcs.)


• Calibration slide
